DVB-S modulator with ASI and RS232 in

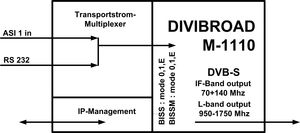

The Divibroad M-1110 is a cost effective modulator with ASI input of the DVB transport streams can feed into SAT systems. With a standby of less than 10sec. after switch and a power consumption of only 15 watts, it is one of the fastest and most efficient modulators its class.
The price of 2.490, - EUR is included following features: 1x ASI / IF band 70 +140 MHZ + L band 900-1750 MHz Output: Level -36 / 5 dBm (+ / - 1.5 dB) / WEB interface / 2 years warranty / modulation: DVB-S QPSK: 1/2, 2/3, 3/4, 5/6, 7/8 / 1-45 Msymbol / support 16Kb and 64Kb FEC blocks / pilot mode / roll of 20% / 25% / 35% of all prices plus VAT + shipping.
