DVB-S/S2 modulator with ASI + 2x RS232 in

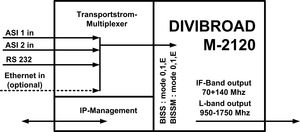

The Divibroad M -2120 has 2 ASI inputs . The integrated transport stream multiplexer multiplexes your SD and HD signal into a single transport stream. Thus, a complicated 2 - carrier operation unnecessary. A further possibility is the automatic switching . In case of failure of the first signal , a switch takes place on the second ASI input . The optional IP transport stream input DVB- compliant data packets can be inserted into the signal.
The price of 5.950, - EUR The following equipment is included : 2 x ASI / IF band 70 +140 MHZ + L band 900-1750 MHz Output: Level -36 / 5 dBm (+ / - 1.5 dB ) / WEB interface / 2 years warranty / modulation : DVB-S QPSK : 1/ 2, 2 /3, 3 /4, 5 /6, 7/8 DVB-S2 : QPSK : 1/ 4, 1/ 3, 2 / 5, 1/ 2, 3/ 5, 2/ 3, 3/ 4, 4/ 5, 5/6 , 8/9 , 9/10 8PSK 3/5 , 2/3 , 3/4 , 5/6 , 8/9 , 9/10 16APSK : 2/ 3, 3/ 4, 4/ 5, 5/6 , 8/9 , 9/10 32APSK : 3/ 4, 4/ 5, 5/6 , 8/9 , 9/ 10 / 1-32 Msymbol / support 16Kb and 64Kb FEC blocks / pilot mode / roll of 20 % / 25 % / 35 % all prices plus Tax + Shipping
